JHM5233F (JHM5233-AT5AR5F) is a low-power consumption, low-dropout regulator chip, suitable for some automotive applications, such as sensors, gauges and air conditioning controllers in the powertrain
JHM5233F (JHM5233-AT5AR5F) is a low-power consumption, low-dropout regulator chip, suitable for some automotive applications, such as sensors, gauges and air conditioning controllers in the powertrain management systems.
Meets AEC-Q100 Grade 1 requirements, wide operating temperature range: -40 ~ 125 ℃
Input voltage range :-45V~45V
Very low quiescent current
5V fixed output
Continuous output current of 100mA
Maximum drop-out voltage :450mv
Extremely low load regulation and line regulation; very low temperature coefficient
Over-current protection, feedback protection, over-temperature protection, over-voltage protection, short-circuit protection
No need complex peripheral circuits
Only 1 uF of bypass capacitors are required externally on the input and output to stabilize the output (ceramic, tantalum, or aluminum electrolytic capacitors can be used as input and output capacitors)

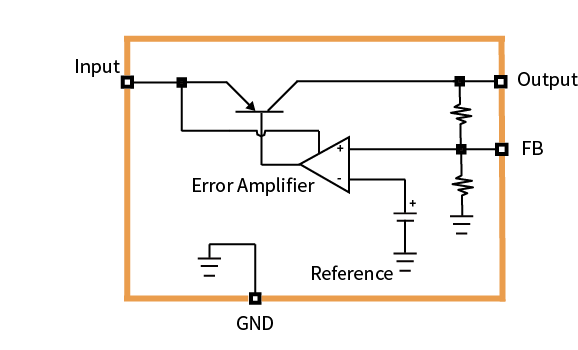

The FB (feedback pin) is externally brought out; via an optional feedforward capacitor, it can effectively suppress light-load overvoltage and reduce output noise.

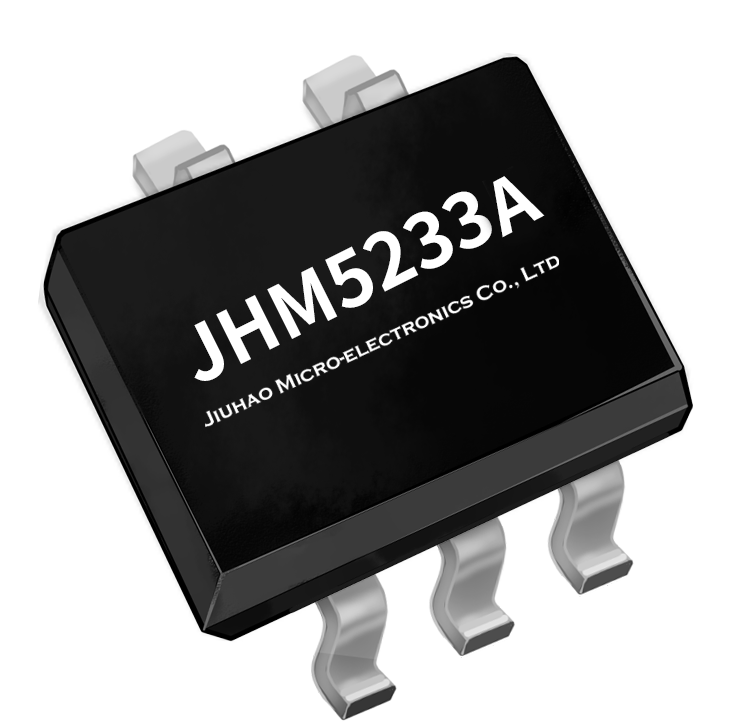

JHM5233A
JHM5233A (JHM5233-AT5ARA) is a low-power consumption, low-dropout regulator chip, suitable for some automotive applications, such as sensors, gauges and air conditioning controllers in the powertrain management systems.
Meets AEC-Q100 Grade 1 requirements, wide operating temperature range: -40 ~ 125 ℃
Input voltage range :-45V~45V
Very low quiescent current
Adjustable output voltage: 1.3 V < Vout < 40V
Continuous output current of 100mA
Maximum drop-out voltage :450mv
Extremely low load regulation and line regulation; very low temperature coefficient
Over-current protection, feedback protection, over-temperature protection, over-voltage protection, short-circuit protection
No need complex peripheral circuits
Only 1 uF of bypass capacitors are required externally on the input and output to stabilize the output (ceramic, tantalum, or aluminum electrolytic capacitors can be used as input and output capacitors)
APPLICATION
SENSORS/Air conditioning controllers/Gauges/Portable instruments
